Brass High Frequency Rotary Joint With Small Size Radar Antennas Fiber Optic Slip Rings

1 Piece
MOQ
Brass High Frequency Rotary Joint With Small Size Radar Antennas Fiber Optic Slip Rings
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Model Number: LPCC-01B
Frequency Range: DC to 6 GHz
Rotating Speed , Max: 100rpm
Nut Material: Brass
Body Material: Stainless Steel
基本情報
Model Number: LPCC-01B
お支払配送条件
製品の説明
Product Description
Bargain Price Only in Alibaba

JINPAT single-channel high frequency slip ring offers high frequency transmission solution between a fixed platform and a rotary platform, such as TV cameras, unmanned aerial vehicles and radar systems.

The slip ring allows signal transmission in the frequency range from DC up to 6GHz, and it can be integrated into the electrical slip ring to transmit power and high speed data. The high frequency slip ring is identified as ease of installation, ease of maintenance and optimal life.

Features

  • Connector type: SMA-K
  • Frequency range: DC-6GHz
  • Insertion Loss: within 0.3dB
  • VSWR: within 1.4
  • Working speed: 100RPM
  • Lifespan: 1 million

Main Application

  • Vehicle Turrets
  • Radar Antennas
  • Remotely Operated Vehicles
  • Video Surveillance Systems
  • Traffic Systems

Product parameters

Frequency Range DC to 6 GHz
Rotating Speed , Max 100rpm
Nut Material Brass
Body Material Stainless Steel

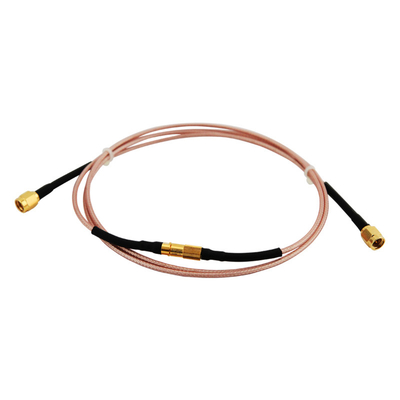

Product Image
