Agricultural irrigation parts suction irrigation machine easy operating slip ring fouth generation

1 Set
MOQ
$266.00(1 - 19 Sets) $250.00(20 - 49 Sets) $235.00(>=50 Sets)
価格
Agricultural irrigation parts suction irrigation machine easy operating slip ring fouth generation
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Usage: Agriculture
Type: IRRIGATION SYSTEM
Applicable Industries: Farms
Showroom Location: Italy
Video outgoing-inspection: Not Available
Machinery Test Report: Not Available
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: Slip Ring
Condition: New
Material: Plastic
Feature: Easy Operating
Diameter: 26.3 cm
After-sales Service Provided: Online support, Overseas service center available
Warranty: 1 Year
Weight: 7.3 KG
Product name: collect ring
Application: Farmland
Function: power and singnal transmission
Advantage: Long Service Life
Color: Silvery Gray
Model: SRV000260-11P/ IV
price: please touch our sales for more details . offer a favorable price
Mode of transport: Air freight, sea freight, express
Rated voltage: 0~480VAC/VDC
Local Service Location: Italy
基本情報
Model Number: SRV000260-11P/ IV
お支払配送条件
Packaging Details: packing as normal , bubble bag and outer box
製品の説明
Recommend Products
Product Description

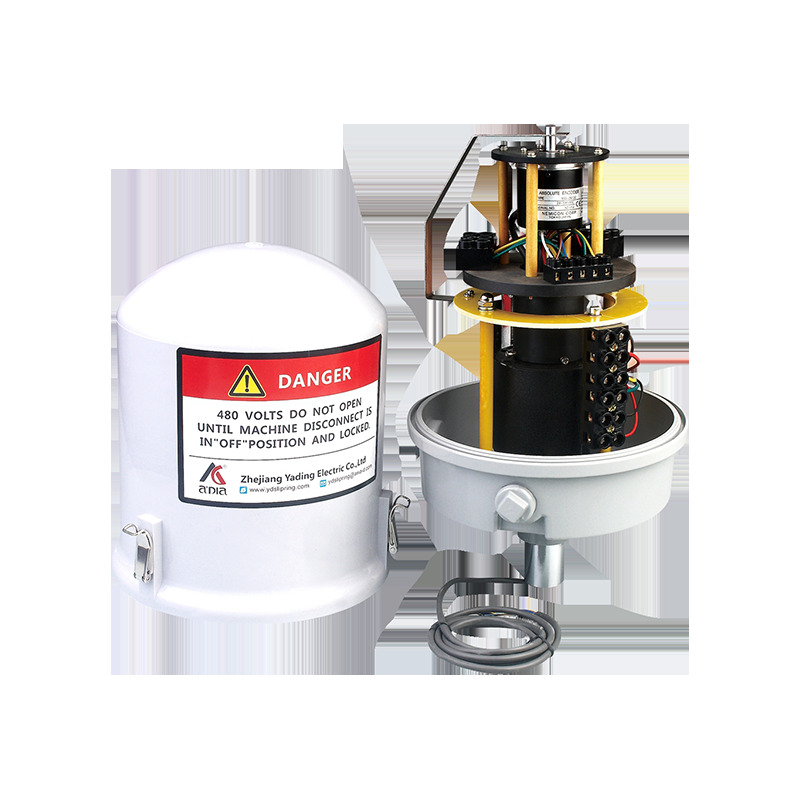

SRV000260-11P/IV（Fouth Generation）

SRV series precision sprinkler irrigation machine slip ring center rotating collector ring is mainly used for remote control of rotating conductive power and signal of electric irrigation system. It can maintain stable operation in harsh climatic environment, and the higher protection level IP68 can be customized.
Product Paramenters
                                                                          Electrical Data
Value
Power
Signal
Working Life
80 million revolutions
Rated Voltage
0~480VAC/VDC
0~240VAC/VDC
Insulation Resistance
≥500MΩ/500VDC
≥300MΩ/300VDC
Wire Specification
AWG12
Silver-plated Teflon
Wire Length
Standard 300mm
Dielectric Strength
300VAC@50Hz，60s
Dynamic Resistance Change Value
<0.01Ω
Mechanical Data
Value
Working Speed
300rpm
Working Temperature
-30℃~80℃
Operating Humidity
0~85% RH
Contact Material
Carbon brush,Brass
Shell Material
Weather-resistant engineering plastics
Wire Lead
Terminals
Protect Grade
IP65

Features and Advantages

1.The collector ring outer cover of irrigation sprinkler uses engineer plastic,improve the function of impact resistance, weather resistance, UV resistance.
2.The base uses aluminum die cast,guarrantee the hardness ,and more portable .
3.precious metal inside for collective power,life time for 80,000,000times rotation,stability for signal trasmission.
4.Rotor and stator as integrated style, no need for maintenance.
5.Encoder and collector ring are integrated structure,optimize the structure design.
6.more precise and control the moving angle of each span.
7.All materials have been treatment by anti corrosion.keep stable operation in harsh climatic conditions.higher protection degree, double protection degree, to ensure the products perform satisfactorily in rain and snow .
Application Field
Installation and Precautions

Installion Way

The collector ring install on the center of rotation device ,consist of rotating and stationary. The rotating parts connect on the rotating structure and rotating , called as “rotor”.the stationary parts connect on the fixed structure,called as
“stator”. ”rotor”connect on base side thread hole G1 or G1/2 . ”stator” connect on the bottom base installation axis G1.

Maintenance Mode

Not exceed the rated current and voltage.This product rotation of 5-10 minutes with no-load and then plus load .So as not to affect the electrical properties.
